MayCUP machine selection guide

Compare the Technical Specifications of MayCUP Machines

Examine production speed, size range, power requirement and automation structure side by side. You can choose up to 4 models.

MYC110 – MYC130 Series

See the compressorless and fast models side by side.

MYC140UF, MYC160 and MYC180 Series

Compare fast, full-servo and high-capacity models.

Technical data note: Comparison values are taken from validated technical fields in the machine master data structure.

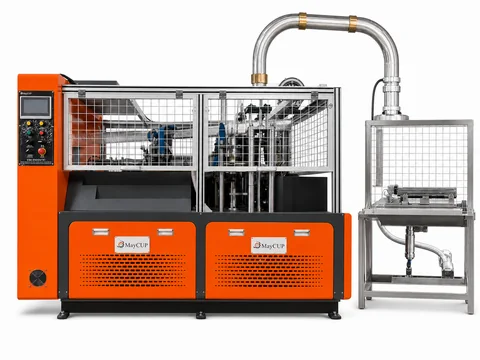

Specification MYC140UF New-Generation Fully Automatic High-Speed Paper Cup Machine

MYC140UF New-Generation Fully Automatic High-Speed Paper Cup Machine

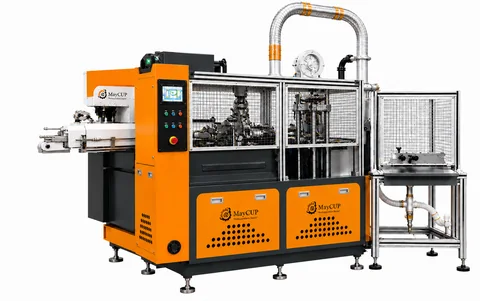

View Details 		MYC160 New-Generation High-Speed Fully Automatic Paper Cup Machine

MYC160 New-Generation High-Speed Fully Automatic Paper Cup Machine

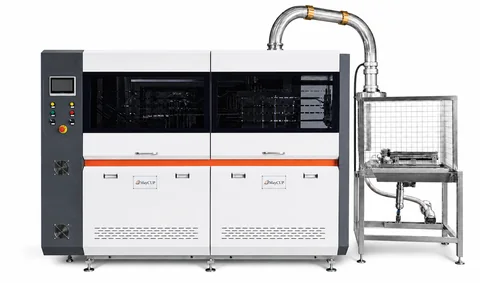

View Details 		MYC180 7 Full-Servo Ultra-High-Speed Paper Cup Machine

MYC180 7 Full-Servo Ultra-High-Speed Paper Cup Machine

View Details
Model Positioning Fast New Generation - 2 Servo Motors Fast New Generation - 4 Servo Motors Ultra-Fast New Generation - 7 Full Servo Motors

Quick Selection Summary
Production Rate 110–130 units/min / 6,600–7,800 units/hour 130-160 Pcs/Min. / 7.800-9.600 Units/Hour 140–160 units/min / 8,400–9,600 units/hour
Mold Size Range 2 - 16 OZ 2 - 16 OZ 2 - 16 OZ
Processable Paper Weight 140-350 g/m² PE 160-350 g/m² PE 150-350 g/m² PE
Motor / Servo Configuration Inverter, 2 Servos Inverter, 4 servos Inverter, full servo (7 units)
Total Power 7 kW (4 kW avg.) 15 kW 16 kW (8 kW avg.)
Air / Compressor Requirement 0.6 MPa, 0.5 m³/min. 0.6 MPa, 0.5 m³/min. 0.6 MPa, 0.5 m³/min.
Control Type PLC control, full automation PLC control, full automation PLC control, full automation

Basic Information
Short Description CSA Endüstri’s MayCUP MYC140UF is a new-generation fully automatic high-speed paper cup machine developed for 2–16 OZ cups. Its stable output of 110–130 cups per minute is supported by an inverter, two servo motors, PLC-controlled full automation and servo bottom-paper feeding. Side-paper preheating, automatic lubrication and automatic silicone lubrication contribute to controlled production and sealing. CSA Endüstri’s MayCUP MYC160 is a new-generation high-speed fully automatic paper cup machine developed for 2–16 OZ cups. Its stable output of 130–160 cups per minute is supported by an inverter, four servo motors, PLC-controlled full automation and two rim-curling stations. The controlled side-paper wetting function manages pre-wetting and helps the cup-rim curling process finish more consistently. CSA Endüstri’s MayCUP MYC180 is an ultra-high-speed paper cup machine with seven full-servo motors, developed for 2–16 OZ cups. Its stable output of 140–160 cups per minute is supported by PLC-controlled full automation, dual side-paper preheating, two rim-curling stations and defective-cup rejection. A spacious service area and automatic lubrication make maintenance planning and production continuity easier.

Technical Specifications
Side Paper Pasting ultrasonic ultrasonic ultrasonic
Side Paper Preheating System Yes (1 piece, perfect sealing) Yes (1 piece, perfect sealing) Yes (2 pieces, perfect sealing)
Working Voltage 380V 50Hz 380V 50Hz 380V 50Hz
Weight 2,300kg 2,800kg 3,000kg
Machine Size 2170 × 1150 × 1820 2700 × 1200 × 1800 2700 × 1200 × 1800
Number of Cup Molds 10 cup molds (Fast machine) 10 cup molds (Fast machine) 10 cup molds (Fast machine)
Side Paper Suction System Suction with 4 suction cups 3 XL suction cups with suction 3 XL suction cups with suction
Bottom Sealing System 1 air-assisted snail type, 2 ceramic heaters, a total of 4 (Perfect bonding and sealing) A total of 4 pieces, 1 air-assisted snail type and 2 powerful ceramic heaters (Perfect bonding and sealing) A total of 4 pieces, 1 air-assisted snail type and 2 powerful ceramic heaters (Perfect bonding and sealing)
Lubrication System Automatic lubrication and filtering system Automatic lubrication, greasing and filtering system Automatic lubrication, greasing and filtering system
Side Paper Silicone Lubrication System automatic automatic automatic
Bottom Paper Waste Cutter With base paper cutter and conveyor included included
Base Paper Feeding Full servo electric motor Full servo electric motor Full servo electric motor
Security Framework full full full
Remote Access via Wi-Fi Yes / Optional Yes / Optional Yes
Rim Curling / Table Count 1 2 2
Base Paper Removal System Manual Manual Manual
Faulty Cup Sorting — optional Yes
Side Paper Wetting Function — Yes —

Key Features
Machine Advantages
  • ultrasonic
  • Single/Double PE(O)
  • Inverter, 2 Servos
  • Compressed-air connection
  • Side Paper Preheating
  • Air-Assisted, Powerful Bottom Heating System
  • PLC Controlled
  • Servo Electric Motor Controlled
  • Remote Monitoring and Control via Wi-Fi (optional)
  • Stable 130–160 pieces/minute production
  • Inverter and servo motor structure
  • PLC controlled full automation
  • Wi-Fi remote access (optional)
  • Controlled side paper pre-wetting function
  • Single / Double PE (opt.)
  • 140–350 g/m² PE
  • 7 Servo Motors
  • automatic
  • 15 kW / 8 kW
  • Çift Yan Kağıt Ön Isıtma Sistemi
  • Çift Tablalı, Isıtıcı Destekli Çift Ağız Kıvırma Sistemi
  • Faulty Cup Sorting system
  • 180 Pieces/Min. Test Speed - Real Stable Production Rate 140-160 Pieces/Min
