LinpacX / Paper cups

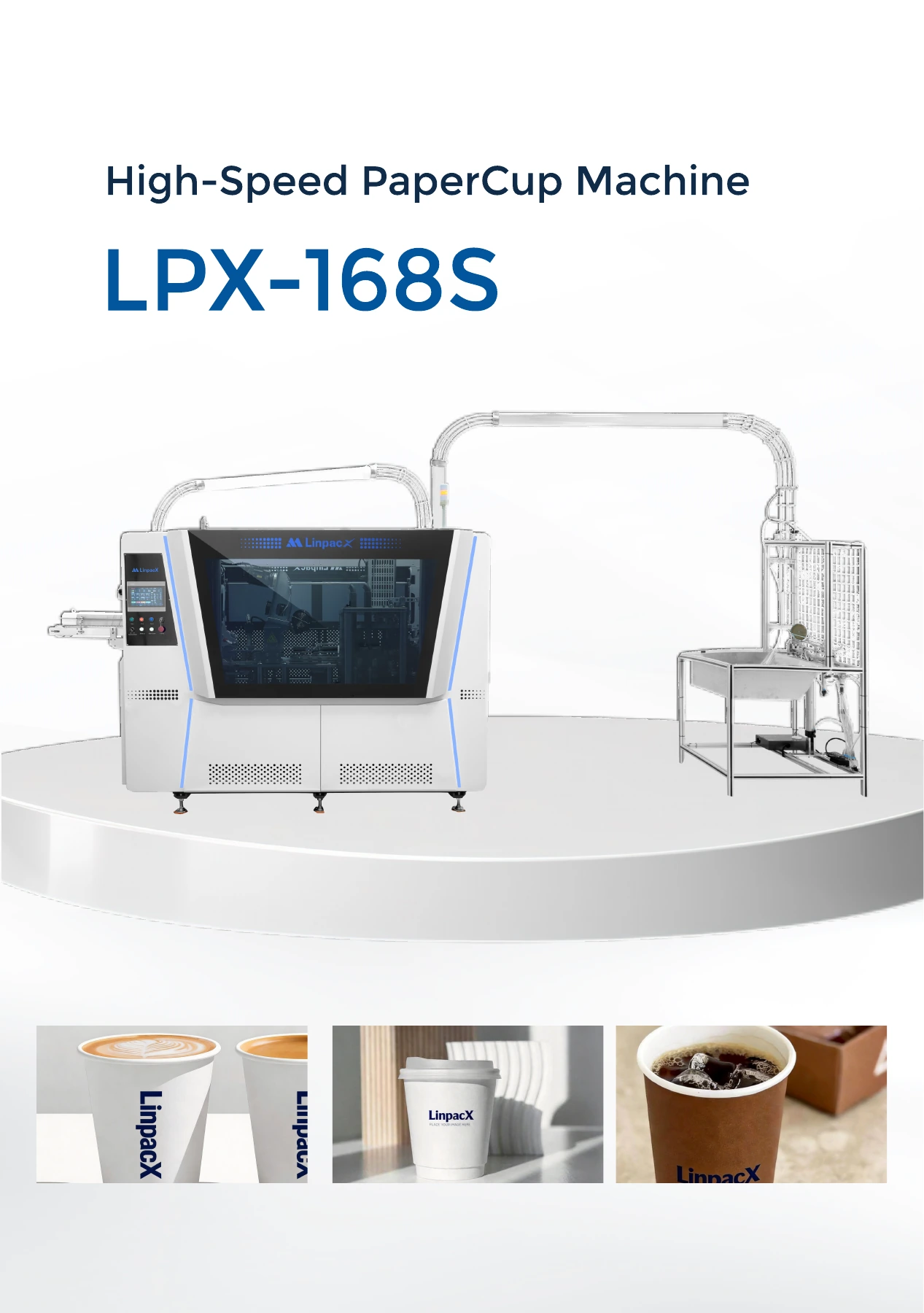

LPX-168S
Full-servo paper cup machine
- Catalogue capacity
- 168pcs/min
- Product size
- 4-16oz
Production highlights
- Full-servo motion control
- Compact, organised paper feeding
- Automatic rejection of faulty cups
- Temperature-controlled sealing
- Door safety interlock
- Touchscreen operator interface

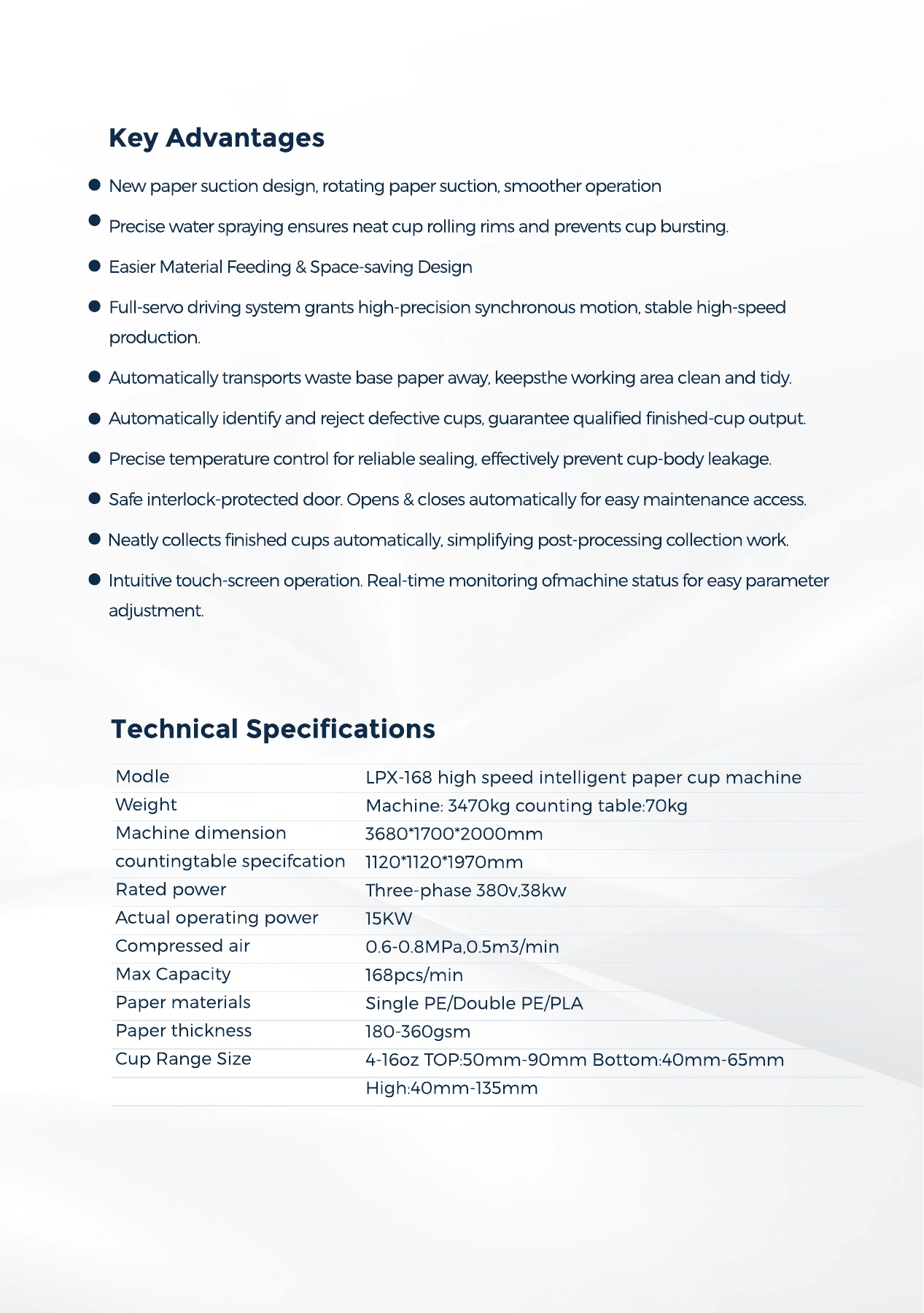

Technical specifications
Technical values and units retain the manufacturer’s catalogue notation. Operating capacity is assessed together with the product, material and process conditions.
| Catalogue model designation | LPX-168 high speed intelligent paper cup machine |
|---|---|
| Weight | Machine: 3470kg counting table:70kg |
| Machine dimensions | 3680*1700*2000mm |
| Counting table dimensions | 1120*1120*1970mm |
| Rated power / supply | Three-phase 380V,38kW |
| Operating power | 15KW |
| Compressed air requirement | 0.6-0.8MPa,0.5m³/min |
| Production capacity | 168pcs/min |
| Suitable material | Single PE/Double PE/PLA |
| Paper grammage | 180-360gsm |
| Product size range | 4-16oz TOP:50mm-90mm Bottom:40mm-65mm High:40mm-135mm |
CSA Endüstri
Engineering and service alongside the machine
Plan product and capacity analysis, plant layout, installation, operator training and after-sales processes with CSA Endüstri under one roof.
Explore models by the product you want to make. CSA Endüstri handles LinpacX sales in Türkiye and all after-sales processes.
