MayCUP machine selection guide
Compare the Technical Specifications of MayCUP Machines
Examine production speed, size range, power requirement and automation structure side by side. You can choose up to 4 models.
MYC110 – MYC130 Series
See the compressorless and fast models side by side.
MYC140UF, MYC160 and MYC180 Series
Compare fast, full-servo and high-capacity models.
Technical data note: Comparison values are taken from validated technical fields in the machine master data structure.
| Specification |

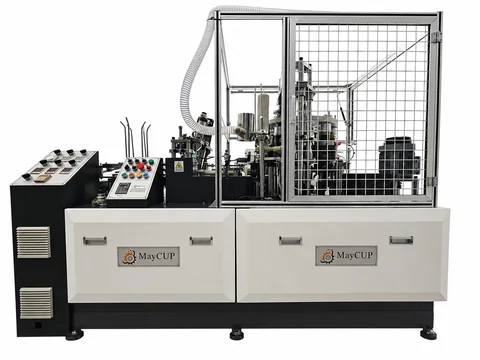

MYC110 Fully Automatic Paper Cup MachineView Details |

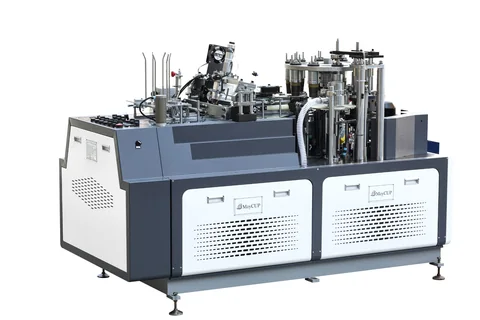

MYC120 High-Speed Fully Automatic Paper Cup MachineView Details |

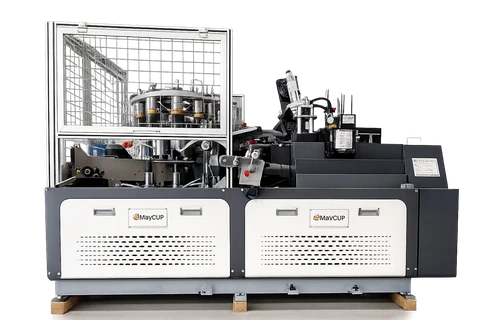

MYC130 High-Speed Fully Automatic Paper Cup Machine - Automation AssistedView Details |
|---|---|---|---|
| Model Positioning | New, Fast and No Compressor Required | New, Fast and No Compressor Required | New, Fast and Automation-Assisted |
Quick Selection Summary |
|||
| Production Rate | 100 Ad/Dak. / 6.000 Ad/Saat | 90-110 Pcs/Min. / 5.400-6.600 Pcs/Hour | 100–120 Ad/Dak. / 6.000–7.200 Ad/Saat |
| Mold Size Range | 2 - 9 OZ | 2 - 16 OZ | 2 - 16 OZ |
| Processable Paper Weight | 150-350 g/m² PE (±20%) | 150-350 g/m² PE | 150-350 g/m² PE |
| Motor / Servo Configuration | Inverter (Low energy consumption) | Inverter (Low energy consumption) | Inverter (Low energy consumption) |
| Total Power | 5 kW (3 kW avg.) | 6 kW (3.5 kW avg.) | 6 kW (3 kW avg.) |
| Air / Compressor Requirement | Compressor not required | Compressor not required | 0.6 MPa, 0.4 m³/min. |
| Control Type | button control | Button control, automation supported | Button control, automation supported |
Basic Information |
|||
| Short Description | CSA Endüstri’s MayCUP MYC110 is a fully automatic paper cup production machine that operates without an external compressor. It is suitable for compact production areas, with a 2–9 OZ range and a stable output of 100 cups per minute. Its inverter drive, single-roller bottom-paper feeding and heat or ultrasonic side sealing options support controlled production. | CSA Endüstri’s MayCUP MYC120 is a fully automatic paper cup production machine with an integrated air system, so it does not require an external compressor. Designed for 2–16 OZ cups, it provides a stable output of 90–110 cups per minute and fast commissioning through its plug-and-play structure. Its shaft-driven mechanism, helical gear design and spacious service area support stable operation and easier maintenance access. | CSA Endüstri’nin MayCUP MYC130 modeli, 2–16 OZ karton bardak üretimi için geliştirilmiş otomasyon destekli hızlı tam otomatik karton bardak makinesidir. 100–120 bardak/dakika stabil kapasite; ultrasonik yan kağıt yapıştırma, çift merdaneli servo taban kağıdı besleme ve otomatik yağlama sistemleriyle desteklenir. Buton kontrol ve otomasyon destekli yapı, üretim ayarlarının izlenmesini ve vardiya boyunca kararlı çalışmayı kolaylaştırır. |
Technical Specifications |
|||
| Side Paper Pasting | Ultrasonic/Heat | Ultrasonic/Heat | ultrasonic |
| Side Paper Preheating System | optional | optional | optional |
| Working Voltage | 380V 50 Hz / 220V (O) | 380V 50 Hz / 220V (O) | 380V 50Hz |
| Weight | 1,800kg | 2,100kg | 2,100kg |
| Machine Size | 2080 × 920 × 1650 | 2180 × 1050 × 1600 | 2180 × 1050 × 1600 |
| Number of Cup Molds | 10 cup molds (Fast machine) | 10 cup molds (Fast machine) | 10 cup molds (Fast machine) |
| Side Paper Suction System | Suction with 2 suction cups | Suction with 4 suction cups | Suction with 4 suction cups |
| Bottom Sealing System | 5 (Excellent bonding and sealing) | 5 snail types (Perfect bonding and sealing) | A total of 5 snail types, 3 of which are air-supported (Perfect bonding and sealing) |
| Lubrication System | Automatic lubrication and filtering system | Automatic lubrication and filtering system | Automatic lubrication and filtering system |
| Side Paper Silicone Lubrication System | Manual | automatic | automatic |
| Bottom Paper Waste Cutter | channel type waste | With base paper cutter and conveyor | With base paper cutter and conveyor |
| Base Paper Feeding | Single Roller | Double roller, servo electric motor | Double roller, servo electric motor |
| Rim Curling / Table Count | 1 | 1 | 1 |
| Security Framework | Yes | optional | Yes |
| Base Paper Removal System | Manual | Manual | Manual |
| Remote Access via Wi-Fi | — | — | optional |
Key Features |
|||
